Petroleum Shaker Screen

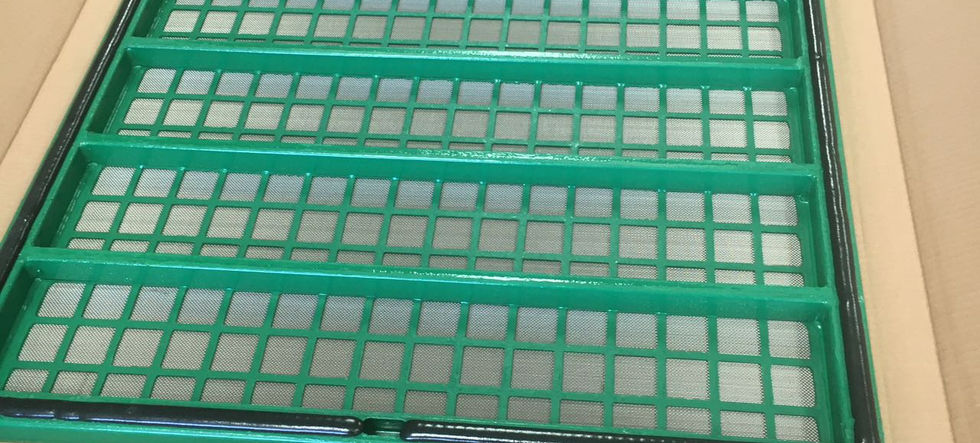

Steel Frame Screen
-
Steel frame screens: main features are as follows:
1)These screen panels are constructed with two or three 304 or 316 stainless steel wire cloth layers with a steel backing plate and steel frame combined together. Because of different mesh size and hole size, clients can get better
filtering effect.
2)The bottom high strength steel frame supporting bar with the moderate tension screen cloth combined together infinitely enhance the screen intensity and endurance toget better filtering effect. Mesh sizes range from 20 to 325. The whole cloth is divided into independent small surfaces to prevent the part
excessive and expansive damages. With a special rubber plug together to repair damage can save the time to replace the screen,Increase the efficiency and reduce the cost.

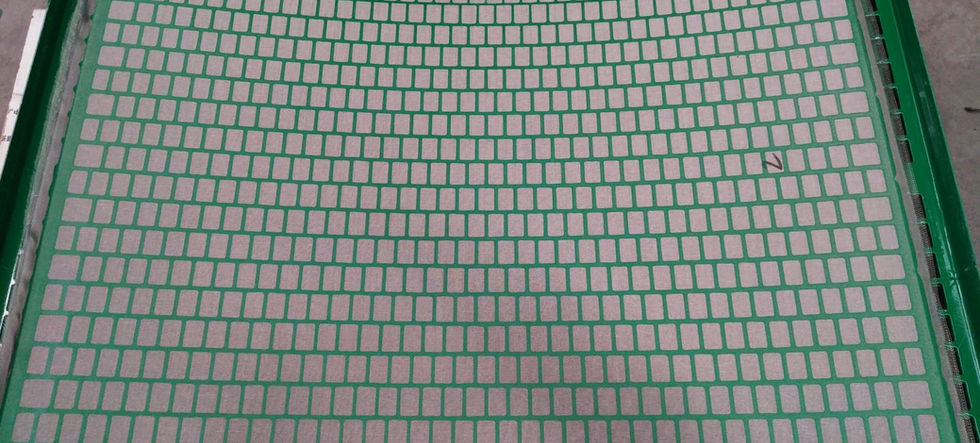

Hook Strip Flat Screen
-
Hook strip flat screens: the series applied most widely at present. Main features are as follows
1)These screen panels are constructed with two or three 304 or 316 stainless steel wire cloth lavers with a steel backing plate combined together. Because of different mesh size and steel backing plate, the conditions of using intensity get the best and most effective filtering area.
2)The above of thin wire cloth with middle and the bottom of the thick wire cloth, combined with different thickness steel backing plate together infinitely enhance the whole screen intensity. Because of different model and requirements, clients can choose different steel backing plate forms. For example, hexagonal, rectangular square and so on, supporting the above different screen cloths. the whole cloth divided into independent small surfaces prevent the part excessive and expansive damages, better to extend the lifetime use. -
(Common Screen Model)
-
(ATT: Other models can be produced as customers provide details of dimension and requirements)
-
-
Available API：20,30,35,45,50,60,70,80,100,120,140,170,200,230,270,325,400
Providing shaker replacement screens, the most common shakers on the market: -
Brandt VSM-300
-
Brandt Multi -Sizer
-
Brandt King Cobra
-
Brandt King Cobra Venom
-
Brandt King Cobra Hybrid
-
Brandt LCM-2D
-
Brandt LCM-3D
-
M -I SWACO Mongoose PT & PRO
-
M -I SWACO MeerKat
-
M -I SWACO BEM 650
-
Derrick 503,504,513,514
-
Derrick FLC 2000
-
Brandt LCM-3D
-
Vortex Flu. System Orbital
-
Fluid Systems FS -500
-
RUFF National 285p
-
...And More...

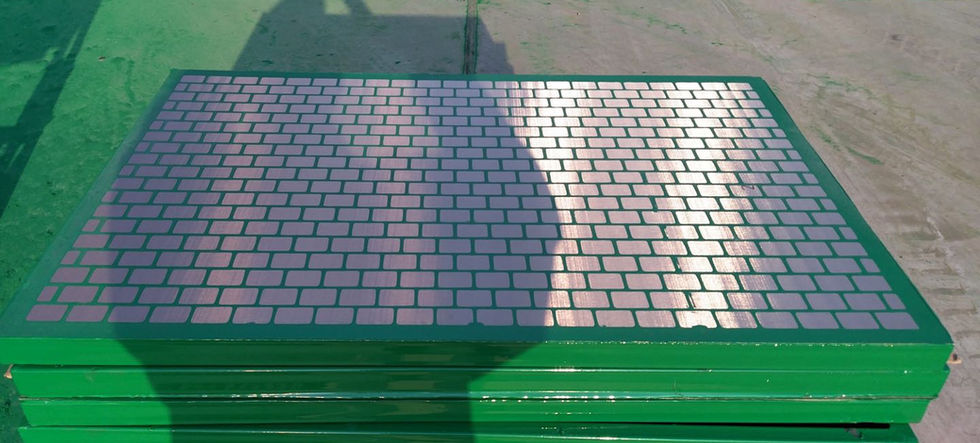

Wave Screen
-
Wave screen is named by his special wave form. Main features are as follows
These screen panels are constructed with two or three 304or316 stainless steel wire cloth lavers. After compounded and bended with a steel backing plate combined together, the wire cloth and bottom steel backing plate are
combined tightly to increase the filter in an area 120% to 150% more than hookstrip flat screen to get better effect. -
(Common Screen Model)
-
(ATT: Other models can be produced as customers provide details of dimension and requirements)
